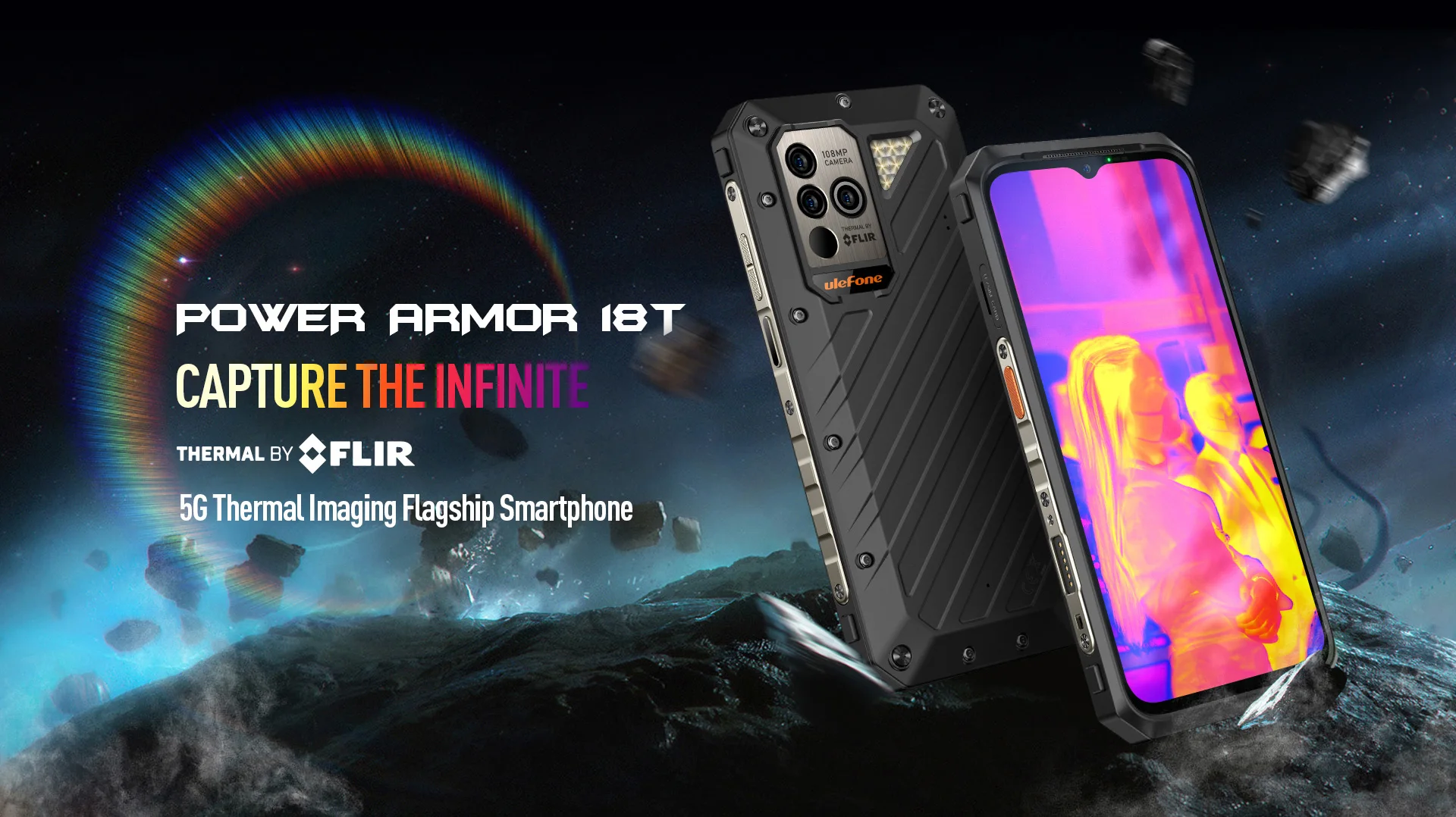

Ulefone Power Armor 18T Rugged Phone Thermal Imaging Camera 900 5G 9600mAh 66W 12GB 256GB rugged mobile phone

Power Armor 18T 5G Specifications

Physical Characteristics

Color

Black

Material

PC

USB

Type-C, USB 2.0

Headphone Jack

3.5mm CTIA

Card Slots

2, 1 Nano-SIM + 1 Nano-SIM/microSD

Keys

Right: Power button (Fingerprint) + Volume button
Left: Custom Key

Size & Weight

Product Size

175.2*83.4*18.8 mm

Product Weight

409 g

Package Size

101*197*63 mm

Package Weight

830 g

Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

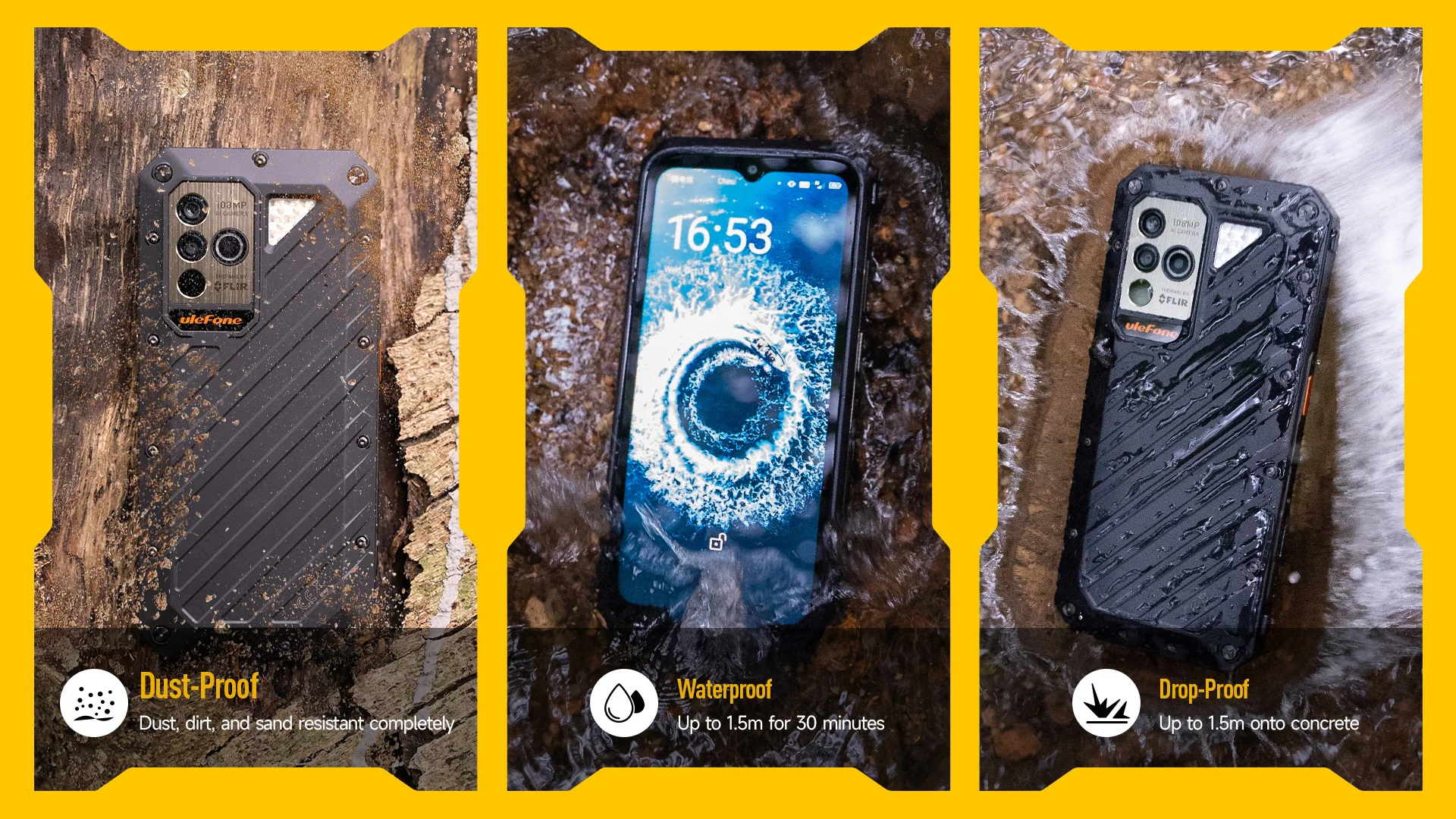

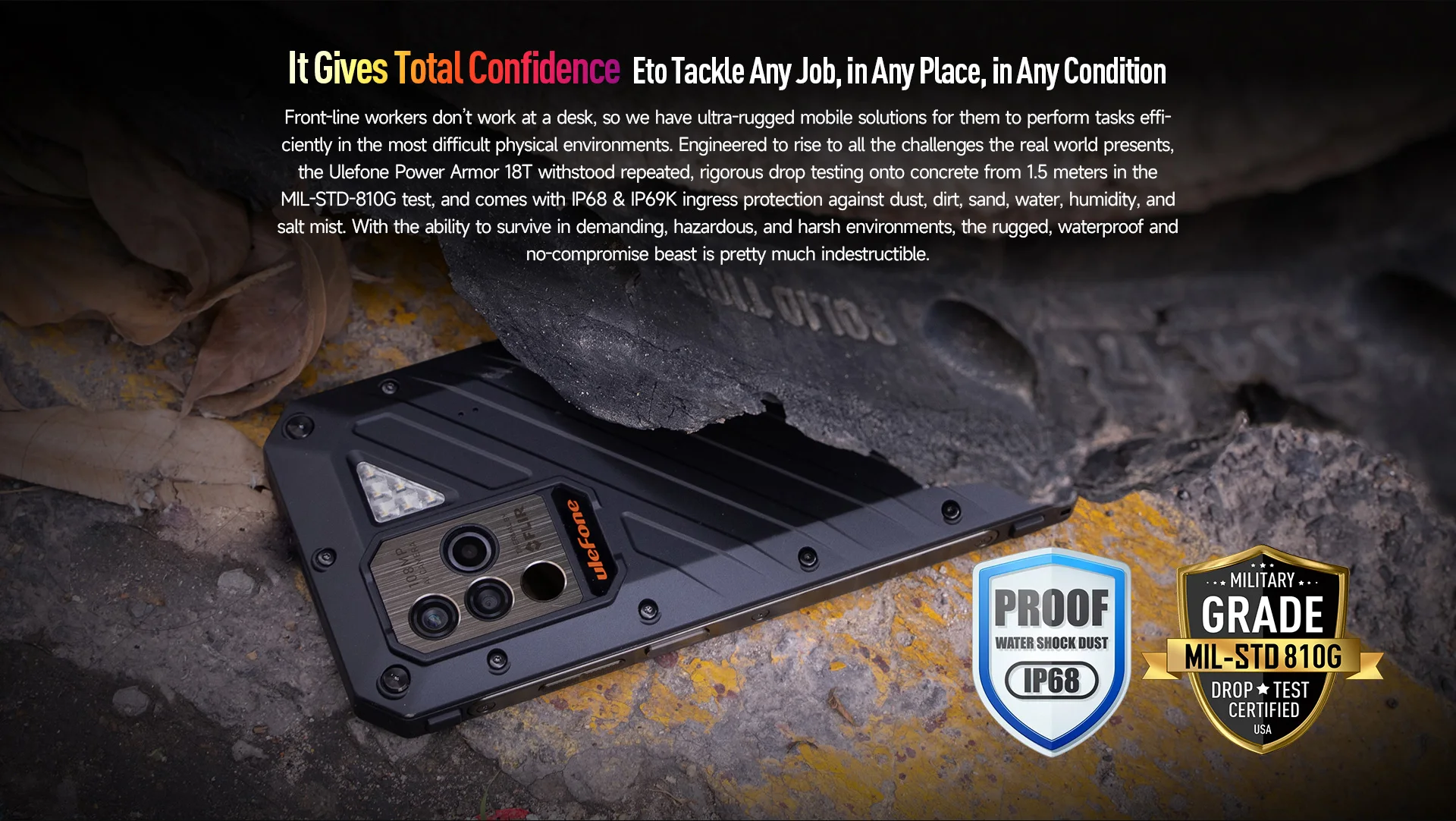

Ruggedness

Waterproof

Up to 1.5m for 30 mins

Dustproof

Dustproof

Shockproof

Up to 1.5m onto concrete

Working Temperature

-20℃ - 55 ℃ (-4℉ - 131℉)

Certification

IP68

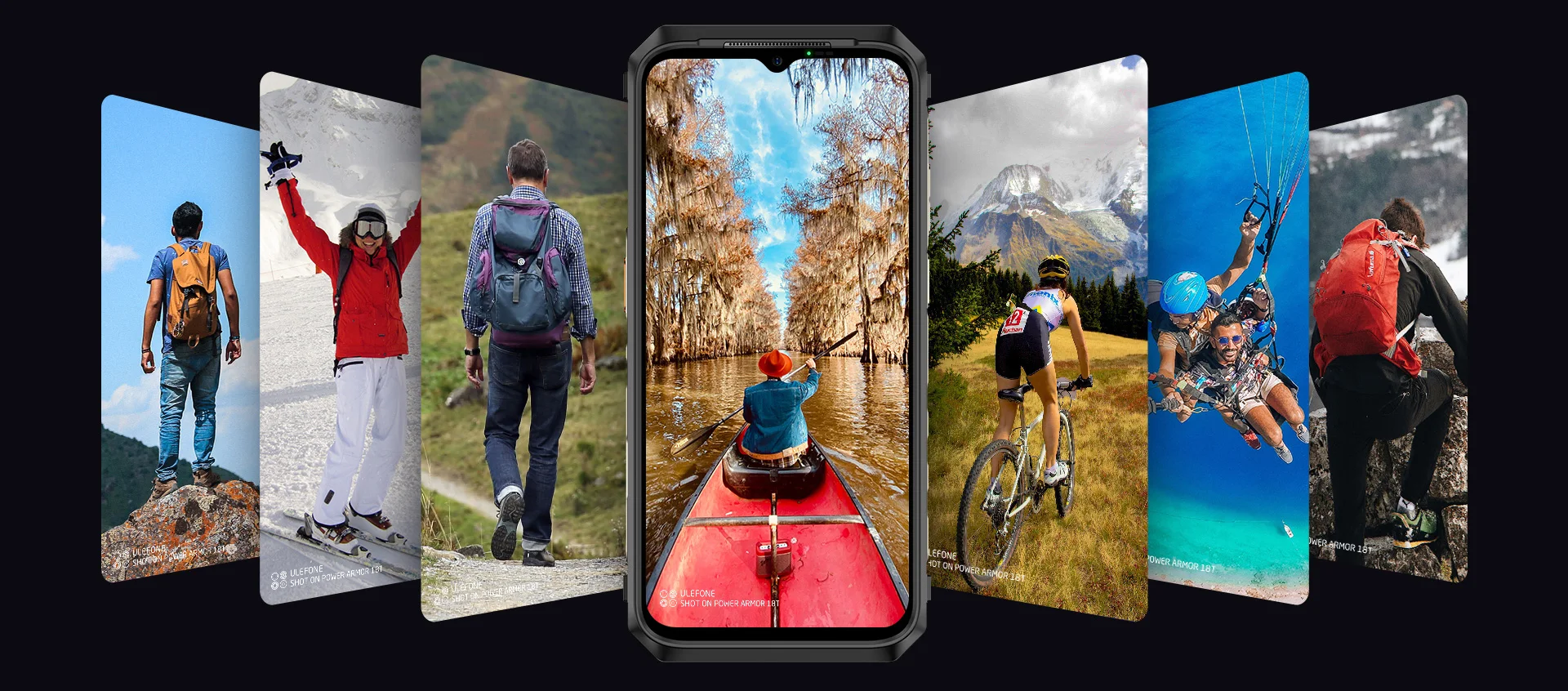

Display

Screen Size

6.58-inch

Screen Resolution

1080 x 2408 FHD+

Aspect Ratio

20:9

PPI

401

Color Depth

8 bit, 16.7M

Refresh Rate

120Hz (240Hz touch sampling rate)

Screen-to-Body Ratio

95%

Multi-touch

10

Processor

CPU Model

MediaTek Dimensity 900 MT6877

Main frequency

2.4GHz

CPU Core

8, 2x Cortex-A78 + 6x Cortex-A55

GPU

Arm Mali-G68 MC4

RAM & Storage

RAM

17GB = {12GB + 5GB expansion(5GB is the virtual memory expansion, which can be optionally disabled)}

Storage

256GB

Max. Expansion Supported

2TB

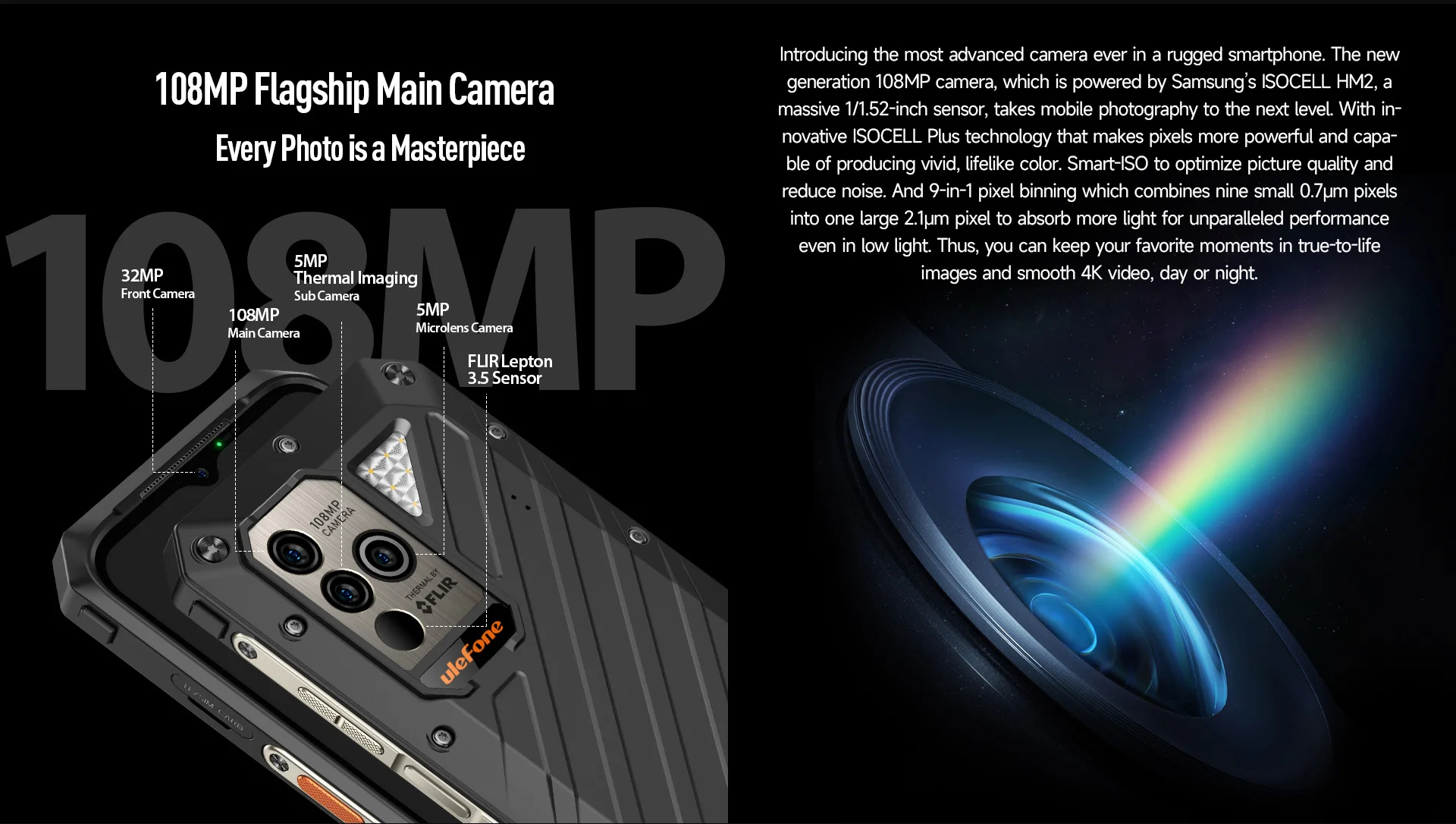

Rear Camera

Rear Camera Numbers

3

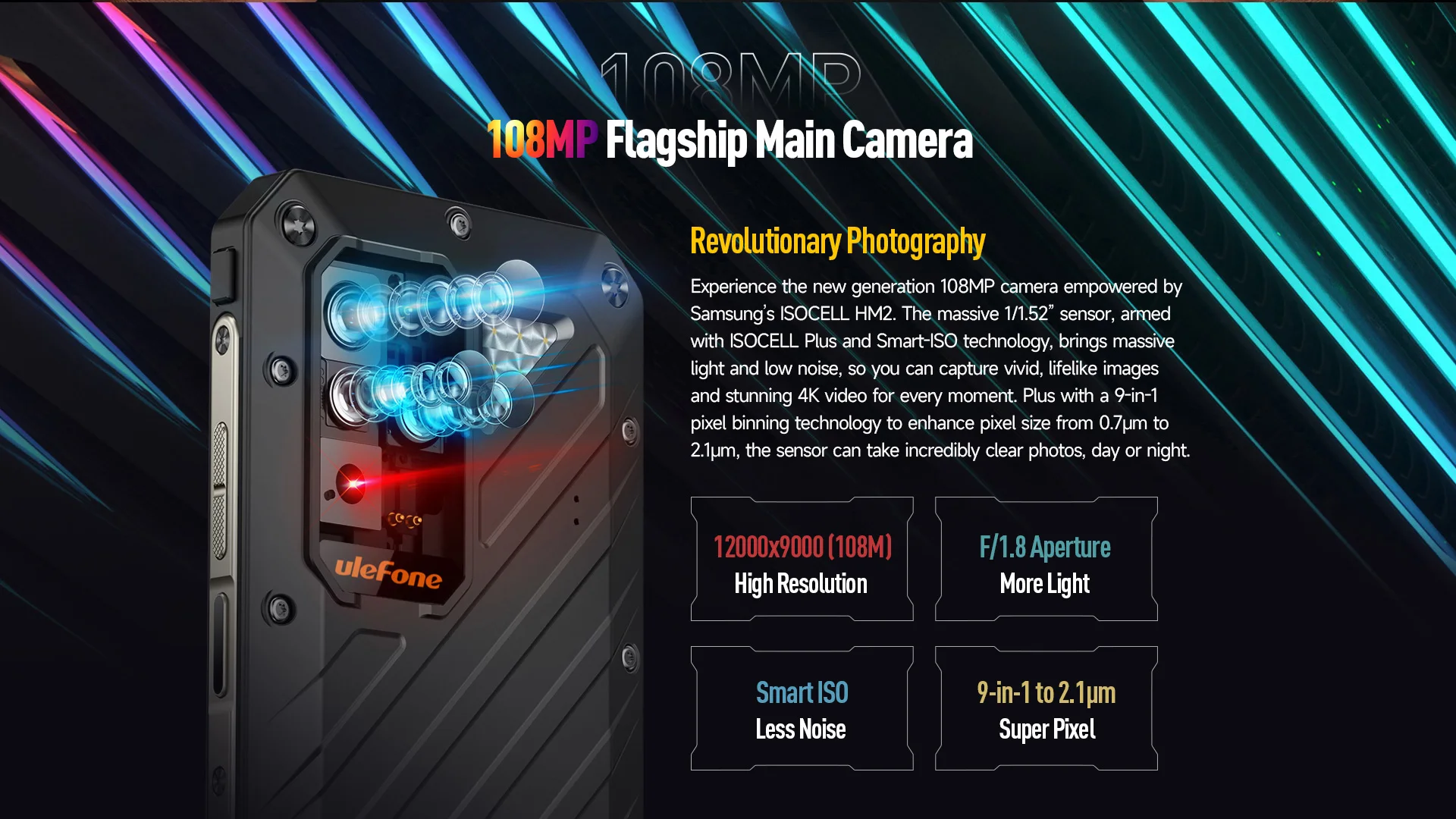

Main Rear Camera

Pixel: 108MP

Details: Samsung HM2 CMOS sensor, 0.7µm, 6 piece lens, FOV 82.3°, ƒ/1.89 large aperture

Macro Lens

Pixel: 5MP

Details: 60x magnification, Samsung S5K5E9 CMOS sensor, FOV 77°, ƒ/3.0 aperture

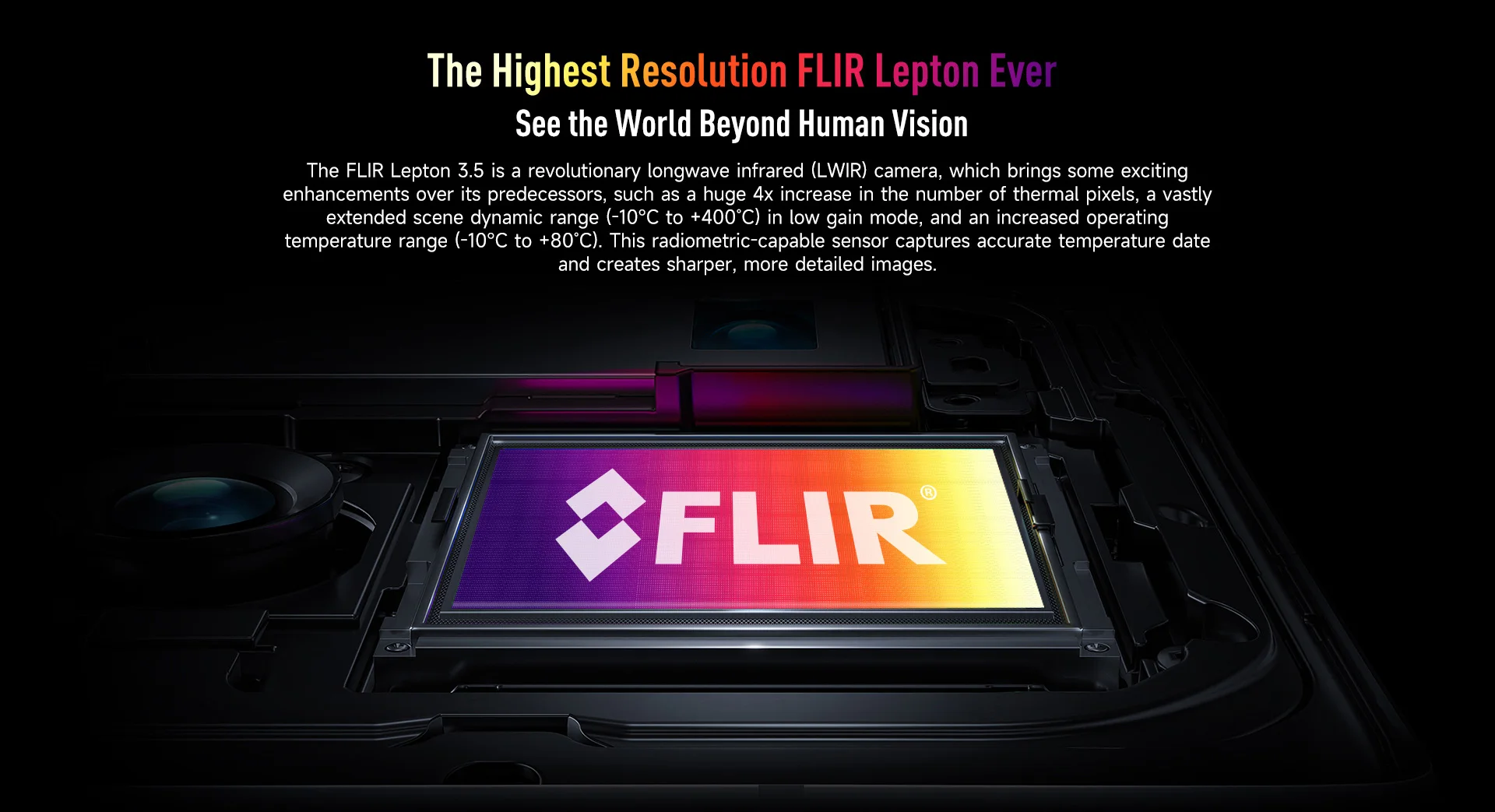

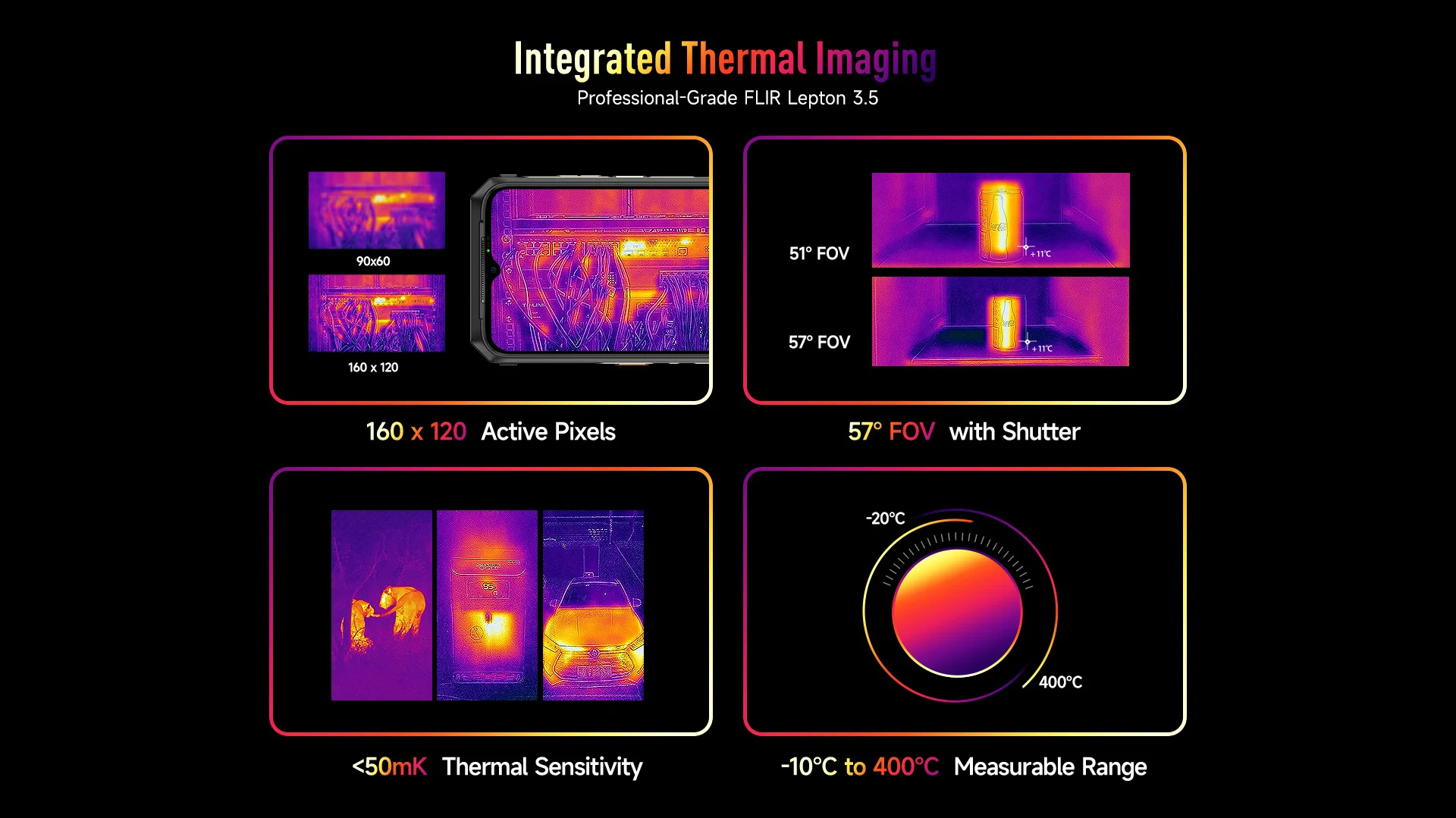

Thermal Camera

Pixel: 5MP

Details: GC5035 CMOS sensor, ƒ/2.2 aperture

Flash

6x LEDs

Video Recording Resolution

4K@30fps, 1080P@30fps, 720P@30fps, 480P@30fps

Special Features

Microscope, Beauty Mode, 108MP Mode, Pro Mode, Portrait, Gif, Panorama mode, Mono Mode, Bokeh Mode, QR Code

Front Camera

Pixel

32MP

Details

Samsung S5KGD1 CMOS sensor, 1.2µm, 5 piece lens, FOV 73.7°, ƒ/2.0 large aperture

Video Recording Resolution

1080P@30fps, 720P@30fps, 480P@30fps

Special Features

Beauty, High-Res, Gif, Mono

Battery & Charging

Capacity

9600 mAh

Watt Hours Per Battery

37.15 Wh

Battery Type

Li-polymer battery

Charging Details

66W, 11V/6A

Wireless Charge

15W Max, support wireless reverse charging

Network & Connectivity

Card Type

Nano-SIM + Nano-SIM/microSD

Cellular

5G/4G/3G/2G

Band Details

5G: NR Sub6: N1/2/3/5/7/8/20/25/28/38/41/66/77/78/79

4G: LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66/71
LTE-TDD: B34/38/39/40/41

3G: WCDMA: B1/2/4/5/6/8/19

2G: GSM: B2/3/5/8
CDMA: BC0/BC1

Standby Mode

Dual SIM dual standby

VoNR

Support

VoLTE

Hardware support, whether you can use VoLTE depends on the local carriers, because not all of the local carriers can support this function.

WiFi

2.4G/5G, 802.11 a/b/g/n/ac/ax, support Wi-Fi 6

blue Version

BT5.0

Navigation

GPS (L1+L5 Dual Band) + Glonass + BeiDou + Galileo

Audio

Speaker Numbers

1

Speaker Model

1325 Box

Speaker Power

1W

Smart PA

AW88261

Security

Fingerprint ID

Side-mounted fingerprint

Face Unlock

Support

System & Features

Android Version

Android 12

Language

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese and others, 200 Android languages in total.

Blinking Notification Light

Support, red/green/blue light

Battery Status Light

Support

Audio Format Supported

MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2

Video Format Supported

MOV/FLV/MKV/AVI/3GP/MP4

Image Format Supported

GIF/JPEG/PNG/BMP

Text Format Supported

TXT/HTML

FM Radio

Support, headset-free

Cell Broadcast

Support

Sensor

Proximity sensor, Light sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Thermal Imaging sensor, NFC

Special Features

Underwater Camera

Support

Gloves Mode

Support

uSmart Expansion Connector

Support, to connect with endoscope, magnifier, etc.

Digital Toolbox

Compass, Gradienter, Flashlight, Hanging Painting, Height Meter, Magnifier, Alarm bell, Plumb bob, Protractor, Sound Meter, Pedometer, Mirror, Barometer

OTG Function

Support

NFC

Support, Google Pay available

Packing List

1x Phone
1x AC Power Charger (EU Plug)
1x Data Cable (100cm)
1x Protective Film (Pre-installed)
1x Tempered Glass Screen Protector
1x SIM Pick
1x Lanyard
1x Multi-language User Manual
1x Thermal Imaging Camera User Manual
1x Multi Function Instruction Card
1x Charging Instruction Card
1x Safety Prompt Card
1x Warranty Card
