IMPROVE 12V 24V LiFePO4 100Ah 200Ah 300Ah Lithium Ion Phosphate Battery Pack for Solar Energy Systerm/RV/Marine
(0
reviews)
Estimate Shipping Time:
8 Days
Sold by:
Sk mall
Sk mall
Price:
$259.90
/pc
Refund:
Share:
Top Selling Products
IMPROVE 12V 24V LiFePO4 100Ah 200Ah 300Ah Lithium Ion Phosphate Battery Pack for Solar Energy Systerm/RV/Marine
We are LifePO4 Lithium Ion Battery factory. Welcome to contact me for more information.
Email: sales14(@)improvecn(.)com
Product Technical Specifications | Product Technical Specifications | |||
Electrical Characteristics | Nominal Voltage | 12.8 V | ||
Nominal Capacity | 200 Ah | |||
Energy | 2560 Wh | |||
Internal Resistance | ≤10mΩ | |||
Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. | |||
Months Self Discharge | ≤3.5% per month at 25℃ | |||
Standard Charge | Charge Voltage | 14.6±0.2V | ||
Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C. | |||
Standard Charge Current | 0.2 C | |||
Max.Charge Current | 0.5 C | |||
Standard Discharge | Max. Continuous Current | 1 C | ||
Peak Current | 400A(<3S) | |||
Discharge Cut-off Voltage | 10.0 V | |||
Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | ||
Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |||
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |||
Water Dust Resistance | IP55 | |||
Mechanical | Cell & Method | LFE3.2V | ||
Plastic Case | ABS | |||

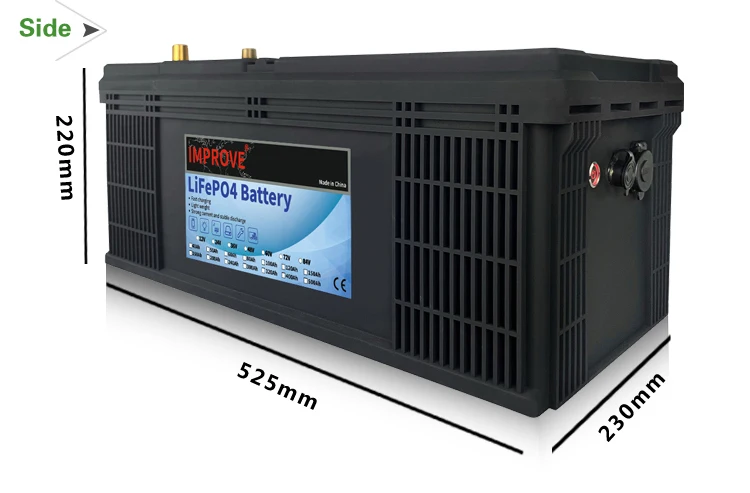

Dimension(L*W*H*TH) | 525*230*220mm or customized | |||
Weight | Approx. 22Kg | |||
